Manufacturer-source research · Portable Chargers

Travel power banks: size a wired phone and tablet kit

Compare NB10000 Gen4 with Anker A1695 integrated cables, output ceilings and carry weight. Match the device and shared-power plan before buying.

By Published Updated
Concept diagram. Check exact profiles: USB-C fit is insufficient. Match device and cable. Read combined output: Two devices share power. Do not add port headlines. Plan actual power access: Pass-through has own limit. Check the current manual.
Original DCL concept diagram, AI-assisted; not a product photograph or hands-on test. Exact Gen4 scope; manufacturer limits are not measured charging results.

By Daily Carry Lab. Primary documentation checked October 13, 2026 (Pacific).

Affiliate disclosure: As an Amazon Associate, Daily Carry Lab earns from qualifying purchases. Retailer links may earn a commission at no extra cost to you. Manufacturer links here document sources.

Research disclosure: This guide uses primary documentation, not hands-on testing. Product figures are manufacturer ratings; no DCL score or benchmark is assigned.

For a phone and tablet travel kit, decide whether you need to charge them together or can take turns. That choice matters more than counting connectors: a bank’s highest single-port output may fall when a second device connects. Write down the devices’ exact charging requirements before comparing capacity.

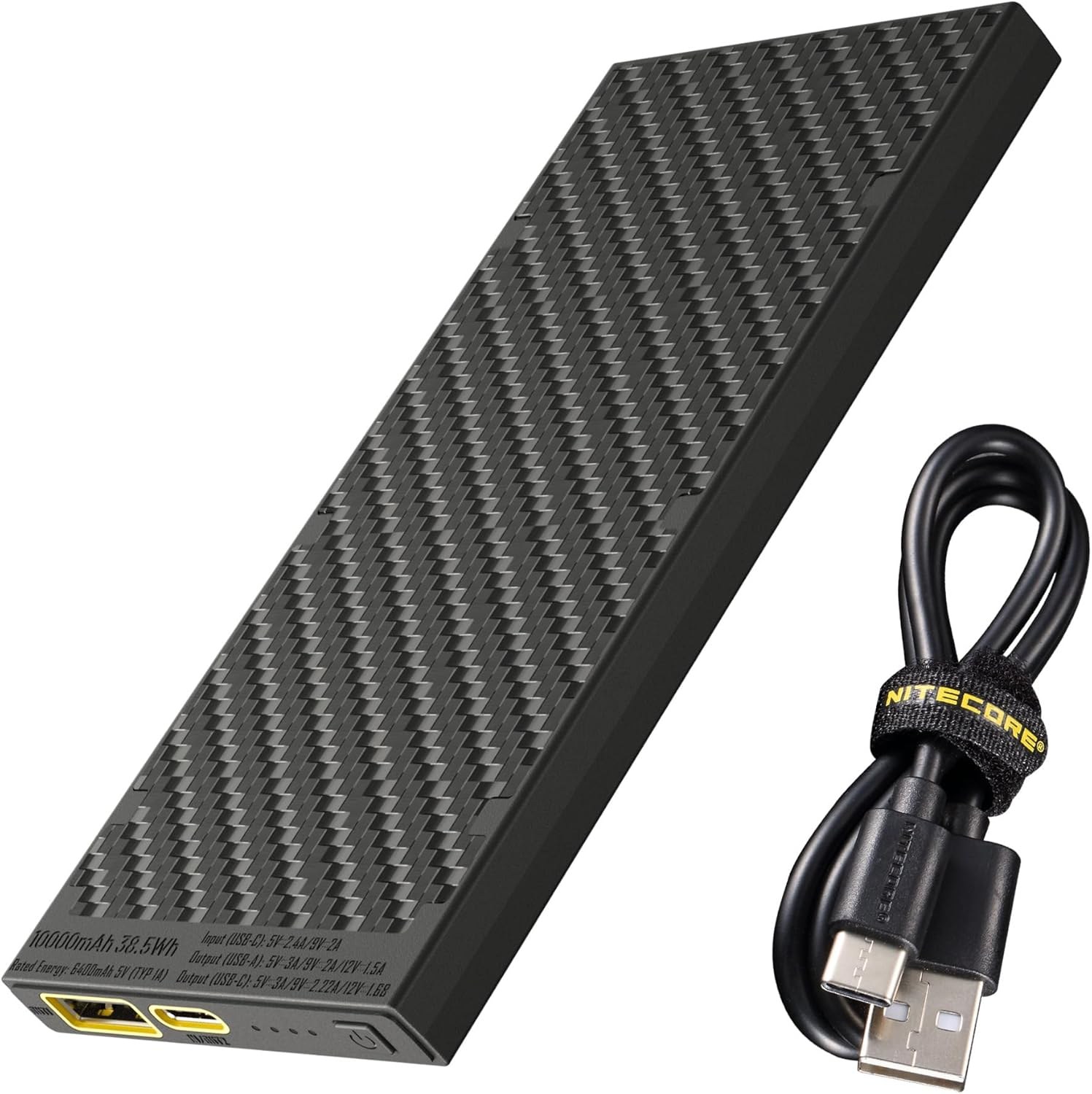

We use the NITECORE NB10000 Gen4 as a documented example because its current manufacturer page separates battery energy, delivered-energy ratings, single-port output, shared output and dimensions. This is a narrow wired-kit guide, not a market-wide ranking. The October 29 integrated-cable comparison adds a higher-output alternative without establishing a device-specific laptop solution, magnetic charging or full-trip endurance.

Match the connections to your devices

NB10000 Gen4 specificationManufacturer valueWhat it means for the kit
Battery energy39Wh; 5,000mAh at 7.8V, expressed as equivalent 10,000mAh at 3.9VKeep the Wh identity with the exact generation
USB-C outputOUT1 or OUT2 up to 22.5WDevice and cable must support the offered charging profile
Shared output15W total at 5V/3ATwo ports do not provide two independent 22.5W supplies
USB-C inputUp to 22.5WUse a compatible supply; input rating is not recharge time
Body116 × 46.8 × 14.5mmAllow additional space for cable bends and plugs
Listed mass143g, ±5g, excluding accessoriesAdd your cable and pouch before estimating kit weight

Source: NITECORE NB10000 Gen4 specifications. These are manufacturer ratings, not measured DCL results. Gen3 specifications are not interchangeable with this generation.

Compatibility questionBefore buyingDecision
USB-C phone or tabletConfirm accepted voltage/current profile in that device’s documentationConnector fit alone does not prove its fastest charging mode
Lightning deviceIdentify a suitable USB-C-to-Lightning cable for that deviceThe USB-C ports do not remove the cable requirement
Phone and tablet togetherDecide whether 15W total meets your usePrefer sequential charging if each needs more than the shared budget
Laptop or demanding handheldCompare its required input with the exact bank profilesThis guide does not establish a laptop-power solution

A useful shopping note is simply: device, cable, requested charging mode, and whether another device will share the bank. If you cannot fill in that note, do not buy based on a fast-charge badge alone. Use the USB-C cable guide for the separate power-versus-data decision.

Plan energy and recharge stops

The page separately lists output-energy ratings at 5V and specified test currents. Those are different quantities from cell capacity. Neither establishes how many full charges your own phone or tablet receives while it is being used. Begin with the device’s battery energy when documented, then leave room for conversion losses and your actual use; DCL has not measured this combination.

Identify when a wall outlet is available and carry the compatible charging cable and supply. Do not turn the bank’s 22.5W input ceiling into a full-recharge-time claim. A lower-power source, a different negotiated mode or your charging setup can change the result. For a larger energy-versus-mass decision, use the high-capacity bank guide.

Read the voltage profiles and output-energy rating together

The Gen4 specification, rechecked October 20, makes the single-device limits more specific than the 22.5W badge. Both USB-C outputs list 5V/3A, 9V/2.22A and 12V/1.87A, with 22.5W stated as the maximum. Its input lists the same voltage/current choices. Those discrete profiles are the evidence to compare with the phone, tablet and wall supply; they are not a promise of every fast-charge protocol a device might use.

Charging planPublished electrical boundaryWhat to check on your device
One phone or tabletListed 5V, 9V or 12V single-port profilesIts required mode and cable must match; a USB-C plug alone is insufficient
Two connected devicesCombined 5V/3A, 15W maximumDo not carry the single-port 9V/12V assumption into shared use
Recharge the bankListed input up to 22.5WA supply’s larger headline rating does not add an undocumented input mode
Device needing a higher-voltage profileThe reviewed list does not document 15V or 20V outputObtain different exact-model evidence before treating this bank as suitable

The same page rates delivered output separately: 6,800mAh at 5V with a typical 3A test current, or 7,200mAh at 5V with a typical 1A test current. Converting those labels gives 34Wh and 36Wh respectively (Ah multiplied by V). These are two manufacturer-rated conditions, not DCL measurements and not an instruction to expect either figure in every use.

Keep that distinction when comparing banks. The cell label is 39Wh; the headline equivalent 10,000mAh is expressed at 3.9V, not 5V USB output. Comparing mAh alone across those voltages can make a smaller usable reserve look larger. Neither output rating establishes phone refill count: the phone’s conversion, activity and required reserve remain separate. Do not choose a bank solely by dividing the headline mAh by the phone’s mAh.

For purchasing, keep the exact NB10000 Gen4 identity and the retained bundle label. A page for an earlier NB10000 generation does not establish these profiles or energy ratings. The maker’s 143g figure excludes accessories, so add the actual included cable and your other kit parts to the carry estimate. We have not weighed that bundle.

Check the flight you will take

FAA guidance requires spare lithium batteries, including power banks, in carry-on baggage and protected from damage and short circuit. It lists the ordinary 100Wh limit and warns that carriers and international rules can be stricter. FAA passenger battery guidance, checked October 13, 2026.

As a current carrier example, American Airlines limits portable chargers to two per passenger and 100Wh each. It requires them accessible and visible during use, prohibits recharging them from seat outlets and excludes overhead-bin storage. American Airlines restricted items, checked October 13, 2026. These are AA’s rules, not a promise for every airline. Confirm every operating carrier and the markings on your actual bank before departure.

Budget and drawbacks

Kit choiceBudget evidence on October 13, 2026Useful whenDrawback
NB10000 Gen4 with suitable cable and supplyCurrent US purchase price unknown; no price ceiling establishedA wired phone/tablet plan fits its documented profilesSimultaneous output is only 15W total
Keep an existing bankNo new bank cost if it meets the plan; replacement cable cost unknownExact model, condition, energy label and profiles can be verifiedAn unmarked or incompatible bank does not become suitable by being available
Choose a larger bankExact model and price require separate selectionDocumented device energy and recharge gaps justify more capacityMore capacity must be weighed against kit mass and transport rules

We have not tested charging speed, usable capacity, reliability or pouch fit. Manufacturer documentation supports the checklist; your exact device and trip determine the choice. For wireless-phone requirements, consult the separate magnetic battery guide.

Check the Gen4 output mode before buying another power bank

The NB10000 Gen4 has an output setting that changes the electrical plan above. Its manufacturer manual, English Output Mode section, checked October 24, 2026, names Regular Mode as the default and Eco Mode as 5V/1A. That Eco label is a limited output setting, not evidence that the bank provides its highest single-port output at the same time.

SituationDocumented control or boundaryBuyer consequence
Need the normal phone/tablet charging arrangementCheck for Regular Mode, shown yellowCompare device requirements with the regular profiles above
Deliberately choose EcoGreen port indication; 5V/1AA 5W ceiling follows by multiplication, not a DCL speed test
Change modesDisconnect devices, then long-press the Touch ButtonLearn the control before assuming a connected phone or cable is faulty
Output stops with a depleted bankManual describes automatic cut-off at low battery voltageA setting change does not replenish the bank

The same manual separates blue power-level indicators from the colored port-mode indicators. Green here identifies Eco output, rather than proving full battery charge or a particular accessory’s compatibility. Keep the two signals separate when checking a travel kit.

For a small accessory, first obtain its required input specification. The existence of Eco Mode alone does not prove continuous charging of every low-draw device or eliminate automatic shut-off under all conditions. For a phone needing more than 5W, treating Eco as the usual fast-charge arrangement would set the wrong expectation. We have not measured charging speed or compatibility in either mode.

Budget and selection: current delivered totals are unknown. Before replacing an otherwise suitable bank for apparently slow charging, verify the mode, cable and exact device input. Before buying this Gen4 for an accessory, establish that the documented output and actual behavior meet the task. A second bank adds another charging and packing dependency; it is useful only when the existing compatible kit cannot meet the plan. These mode instructions do not apply automatically to earlier NB10000 generations, and no new retailer identity is approved here.

Pass-through charging has its own 10W output limit

If you want to replenish a bank and phone from one power adapter, check the pass-through specification separately from ordinary single-port output. For NB10000 Gen4, NITECORE documents simultaneous input and output with the adapter connected to IN/OUT1 and the external device on OUT2. In that arrangement, OUT2 is limited to 10W maximum. It does not retain the ordinary 22.5W single-port ceiling. Gen4 manual, Pass-Through Charging, checked October 25, 2026.

Charging arrangementDocumented output boundarySelection consequence
Bank powers one device without inputRegular profiles listed aboveCompare the exact device input and cable
Adapter replenishes bank through IN/OUT1 while OUT2 supplies a device10W maximum at OUT2Do not plan for the phone’s higher ordinary single-port mode
Two external devices share ordinary output15W total as listed aboveThis is a different configuration from pass-through
Need uninterrupted backup when wall power changesNo transfer-time guarantee established herePass-through alone does not qualify the bank as a UPS

The port labels matter: the documented arrangement uses one connection for the adapter and a second for the device. Plan two suitable connection paths rather than assuming one cable charges both items. A higher-rated wall adapter does not remove the stated OUT2 limit. We have not measured the bank’s own recharge time while it supplies another device, so no completion time or priority between the two batteries is promised.

Do not turn this into an unattended overnight charging recommendation. The same manual says not to leave the product unattended while in use and to stop using it at signs of malfunction. Arrange a supervised charging opportunity consistent with the manual. The bank’s operating-mode controls above remain separate from this connection topology.

Budget and drawback: current adapter, extra-cable and bank totals are unknown. If your existing charger has documented suitable independent outputs, compare that arrangement before buying a bank principally to share an outlet. If pass-through meets your actual device demand, it can be a supported option, but it adds a bank and a reduced output ceiling to the path. This evidence is for Gen4; no earlier-generation behavior, seamless failover or laptop compatibility is established.

Compare integrated cables against the complete carry weight

Research added October 29, 2026. A larger bank is worth considering when it replaces a real cable or output constraint. It is a poor automatic upgrade when the existing phone/tablet kit already covers the trip. Compare the whole connected kit before treating a larger capacity label as a benefit.

The Anker A1695 US specification documents two built-in USB-C cables plus a separate USB-C port and USB-A output. The USB-C cable/port ceiling is 100W; the total output ceiling is 165W. Those figures do not establish three simultaneous 100W outputs. The page lists 595g and approximately 157 × 54 × 49mm. These are manufacturer figures, not our measurements.

DecisionNB10000 Gen4 already discussedA1695 alternativeRemaining drawback
Small phone/tablet reserveRetained 143g figure excludes accessoriesMuch heavier documented body; integrated cablesCount the cables actually displaced before judging kit weight
Higher-voltage USB-C deviceRetained list stops at 12VMaker lists 15V/3A and 20V/5A outputExact device and connected allocation still need verification
Several devices togetherRetained 15W shared boundary165W total ceilingNo exact occupied-port split is established here
Recharge stopRetained input up to 22.5WMaker states up to 100W inputInput ceiling is not a full recharge time

We selected this source-only alternative for its integrated-cable and output tradeoff, not as a best-value or laptop-compatibility winner. Anker identifies A1695 and 25,000mAh/90Wh; that cell label does not establish usable phone refills. We do not adopt the page’s estimated charge counts or broad flight-approval wording. Keep the operating-carrier checks above, read the markings on the actual unit and follow its current instructions.

Make a packing list with each device, required profile, cable reach and simultaneous demand. Then compare keeping the existing bank, charging sequentially and carrying the larger option. Do not add the maximum outputs of individual connectors and call that a supported shared arrangement. Obtain the exact allocation documentation if the purchase depends on it.

Budget and drawback: current complete delivered totals are unknown. Built-in cables can reduce loose items but commit part of the kit to the bank’s cable arrangement; we have not tested cable reach, durability or repair. No new retailer mapping, sustained output, pass-through behavior or device-specific charging result is established. The original Gen4 guidance and disclosures remain applicable to that model only.

Documentation-based schematic: CARRY PLAN. Count the cables actually displaced; POWER PLAN. 100W USB-C ceiling; 165W total ceiling; PURCHASE CHECK. Exact device profile and occupied-port split. No hands-on test.
Original DCL decision schematic, AI-assisted; not a named-product photograph or hands-on test. Apply the exact-model limits in this section.
Research basis

Sources and limits

This guide compares published specifications and source documentation. Daily Carry Lab has not performed hands-on tests of the products in this guide. Consult the dated sources and verify the exact model and current terms before buying.
